BTicino

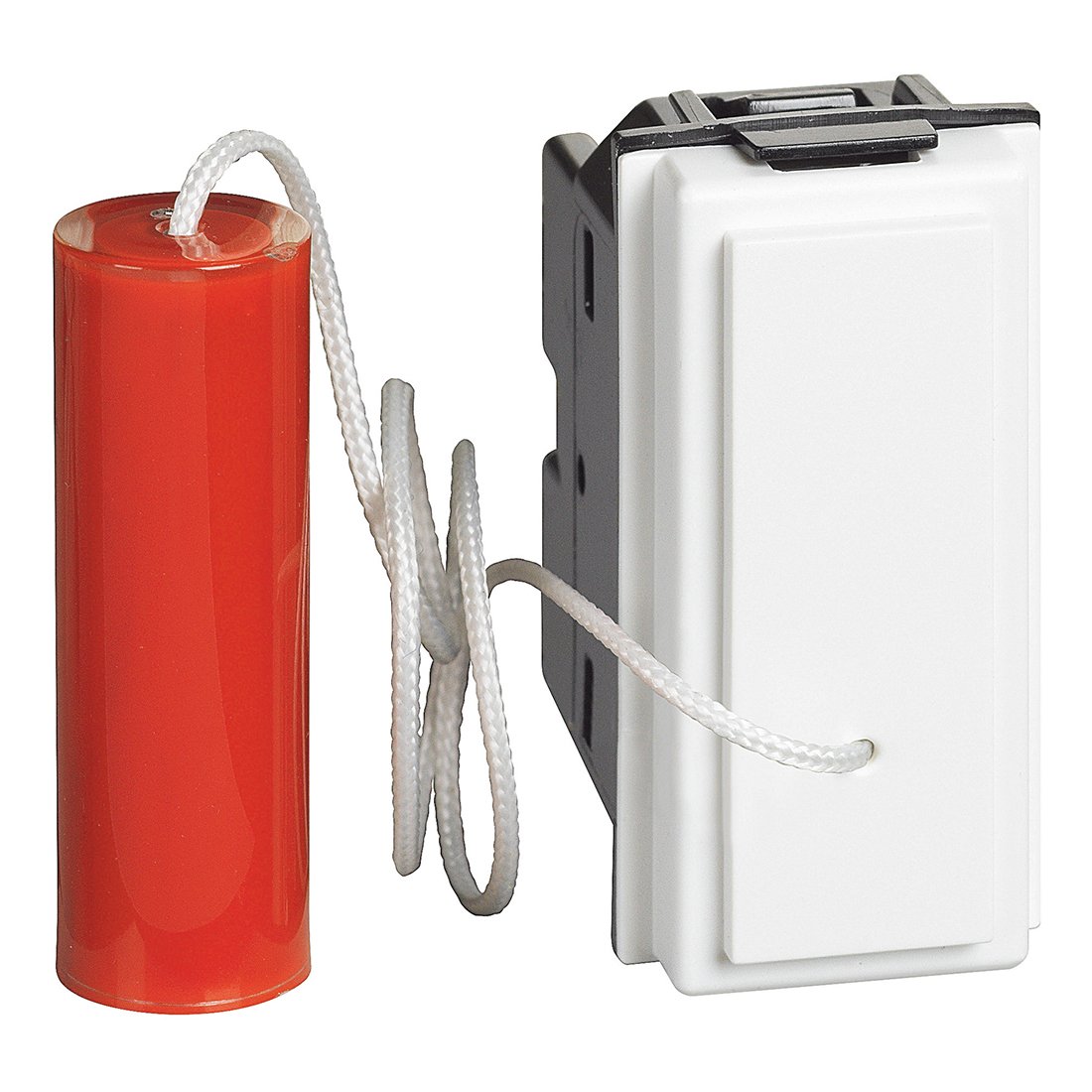

LIVING NOW ŤAHOVÉ TLAČIDLO NO/NC 1 MODUL BIELA
- Kód produktu
- KW4033
- EAN
- 8005543614495
Cena bez DPH
16,57 €
Cena s DPH
20,38 €
Skladom
99+ ks
cord push button 10 A 250 Va.c. 1 P (NO) and 1 P (NC) - provided with rope and red knob - 1 module, White Product characteristics Fully Flat mechanism to follow the aesthetics of the L.Now light point The device must be completed with a…
- Farba
- biela
- Rada
- Living Now
- Smart / Netatmo
- Nie
- Šírka
- 22 mm
- Výška
- 45 mm
- Hĺbka
- 35 mm
Popis produktu
cord push button 10 A 250 Va.c. 1 P (NO) and 1 P (NC) - provided with rope and red knob - 1 module, White
Product characteristics
- Fully Flat mechanism to follow the aesthetics of the L.Now light point
- The device must be completed with a KW02 cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- 10 A, 250 Va.c. 1 P (NO) and 1P (NC)1 module, color White
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- Pull the cord to activate the command
Advantages
- It is coordinated with the L.NOW aesthetic
- To cover the various installation modes, this button is both NO and NC depending on how it is wired.
Technické parametre
| Rada | Living Now |
|---|---|
| Smart / Netatmo | Nie |
| Farba | biela |
| Šírka | 22 mm |
| Výška | 45 mm |
| Hĺbka | 35 mm |
