BTicino

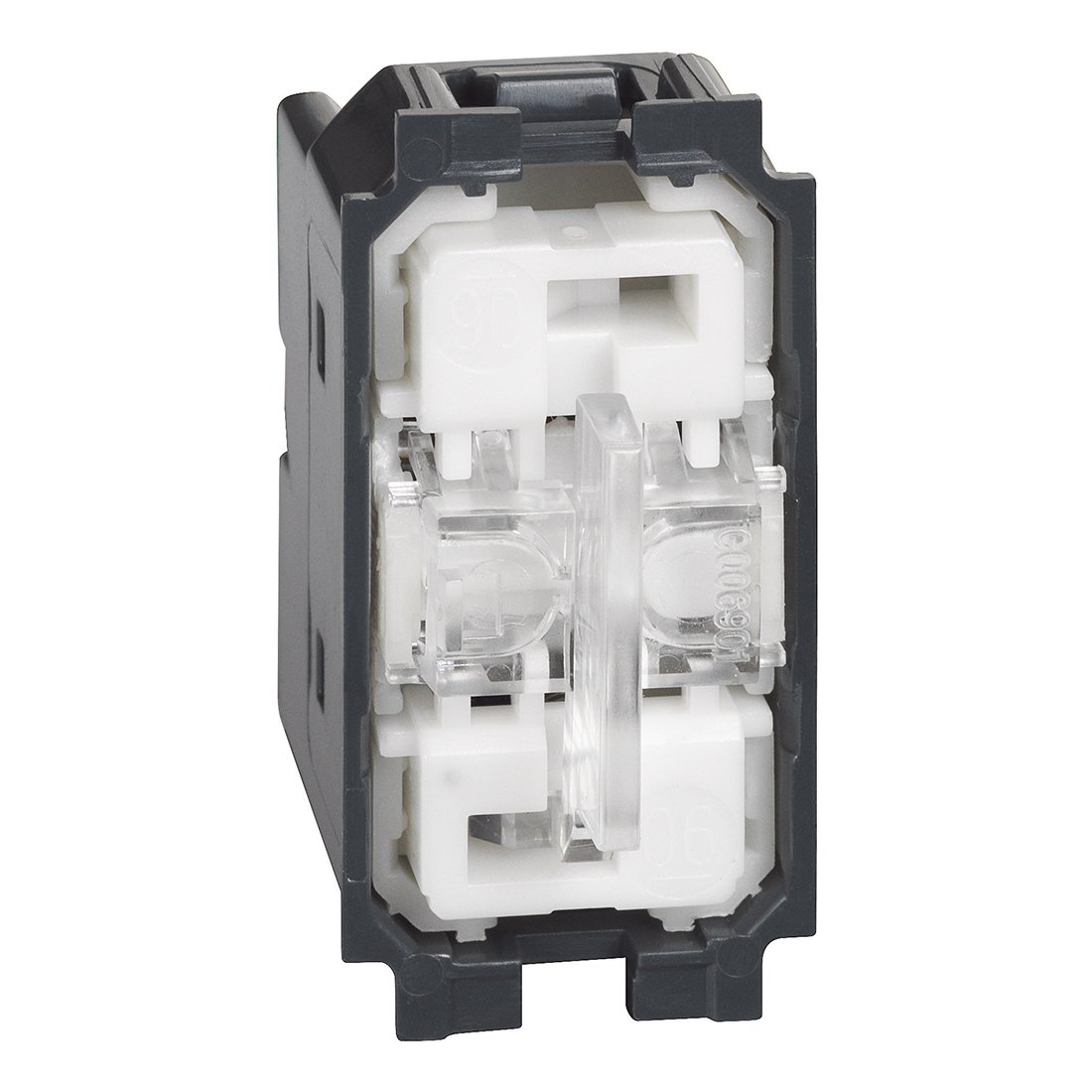

LIVING NOW DVOJITÝ TLAČIDLOVÝ ŽALÚZIOVÝ PREPÍNAČ 1 MODUL
- Kód produktu
- K4027
- EAN
- 8005543610510
Cena bez DPH
20,18 €
Cena s DPH
24,82 €
Skladom
99+ ks
Changeover switch 1P 10 AX, 250 Va.c., double-key 1-0-2, ILLUMINATED - 1 module Product characteristics Fully Flat mechanism to follow the aesthetics of the L.Now light point The device must be completed with the type 06 cover Screw and…
- Farba
- čierna
- Šírka
- 22 mm
- Výška
- 45 mm
- Hĺbka
- 39 mm
Popis produktu
Changeover switch 1P 10 AX, 250 Va.c., double-key 1-0-2, ILLUMINATED - 1 module
Product characteristics
- Fully Flat mechanism to follow the aesthetics of the L.Now light point
- The device must be completed with the type 06 cover
- Screw and plate terminals
- Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
- 10 AX, 250 Va.c. 1 P (NO)1 module
Recommendations / Restrictions
- For internal use only.
Products benefits
Installation
- To be assembled with rolling shutters equipped with end stops
Usage
- The device has three command modes:1. upper side: the rolling shutter rises up to the end of the stroke2. lower side: the shutters go down to the end of the stroke3. central protruding button: reset of the command; the shutter stops.
Advantages
- Three controls at the touch of a button while maintaining the full touch ergonomics of the range
- The strength of design lies in the essentiality of the form obtainedfrom the search for an absolute flatness between the elements of the switch.
Technické parametre
| Farba | čierna |
|---|---|
| Šírka | 22 mm |
| Výška | 45 mm |
| Hĺbka | 39 mm |
