BTicino

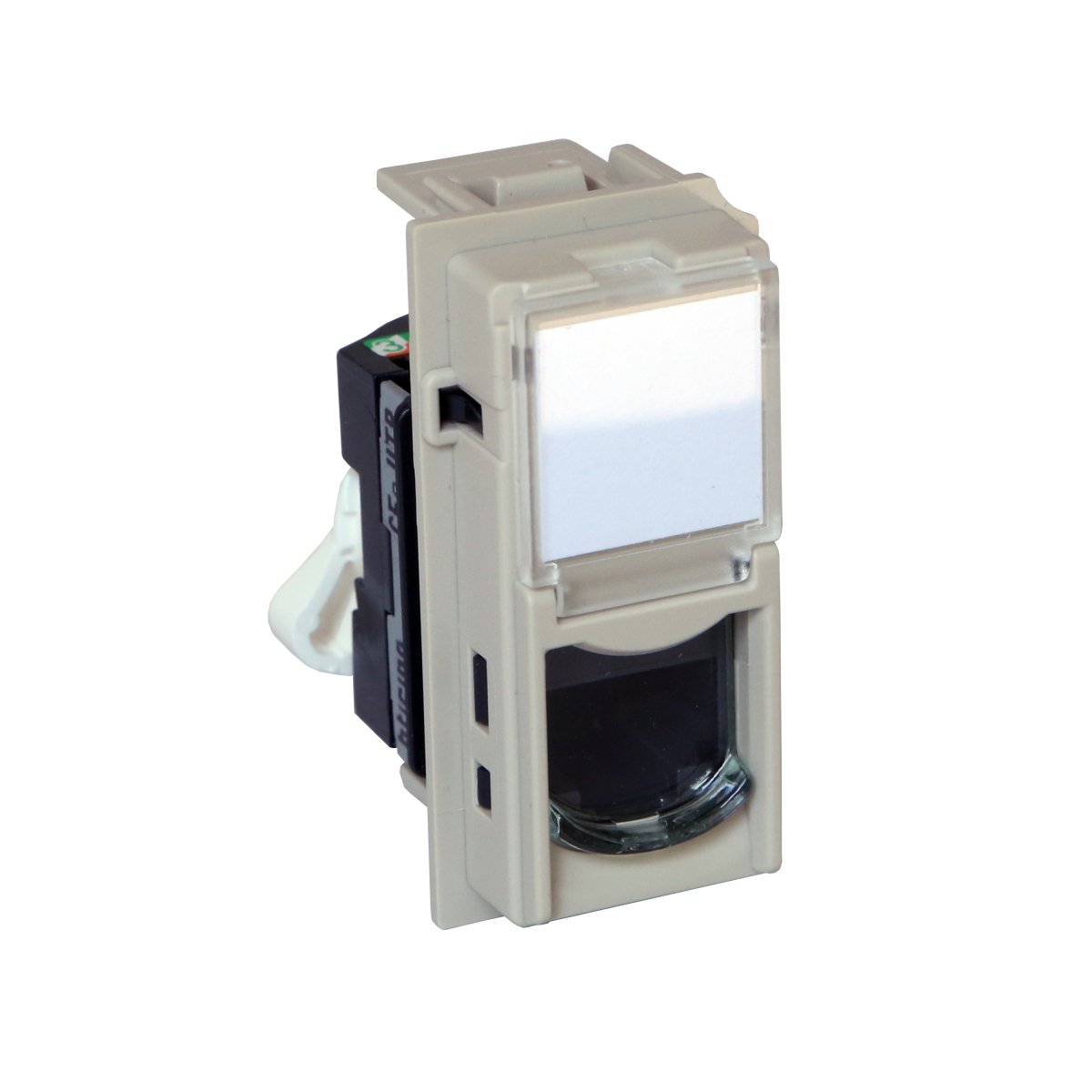

LIVING NOW DÁTOVÁ ZÁSUVKA RJ45 CAT5E UTP BEZ NÁRADIA 1 MODUL PIESOK
- Kód produktu
- KM4279C5E
- EAN
- 8005543621622
Cena bez DPH
6,08 €
Cena s DPH
7,48 €
Skladom
99+ ks
The RJ45 socket connects a device (PC, printer) to the local network (internet box, switch). The wired distribution guarantees a high speed, secured and reliable connection to the internet. Product characteristics RJ45 Cat 5e and Cat 6…
- Farba
- béžová
- Šírka
- 22 mm
- Výška
- 45 mm
- Hĺbka
- 41 mm
Popis produktu
The RJ45 socket connects a device (PC, printer) to the local network (internet box, switch). The wired distribution guarantees a high speed, secured and reliable connection to the internet.
Product characteristics
- RJ45 Cat 5e and Cat 6: Data rate up to 1 GigaBit/s. This allows you to download a 1 GigaBytes file in 8 seconds.
- Support high capacity PoE applications. Power over Ethernet pass electric power along with data on twisted pair Ethernet cabling.
- TIA 568A/B color coded contacts for standard wiring
- Equipped with a transparent protective dust cover protecting the connector.
Recommendations / Restrictions
- Compliant with ISO/IEC 11801 edition 3.0 (2017) standards. Mimimum 40mm depth electrical installation box needed. Take AWG22 up to AWG26 single-core cables. Take AWG26 multicore cables. Indoor use only.
Products benefits
Installation
- Shallow depth mechanism facilitating mounting into the flush-mounted box. Socket equipped with a tool less quick connector for intuitive and reliable wiring.
Usage
- Suitable for commercial and residential installation. IP and analog phones. Very suitable for downloads, streaming or online games requiring low latency.
Advantages
- Toolless connector with fast connection thanks to integrated crimping.
- Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
Technické parametre
| Farba | béžová |
|---|---|
| Šírka | 22 mm |
| Výška | 45 mm |
| Hĺbka | 41 mm |
